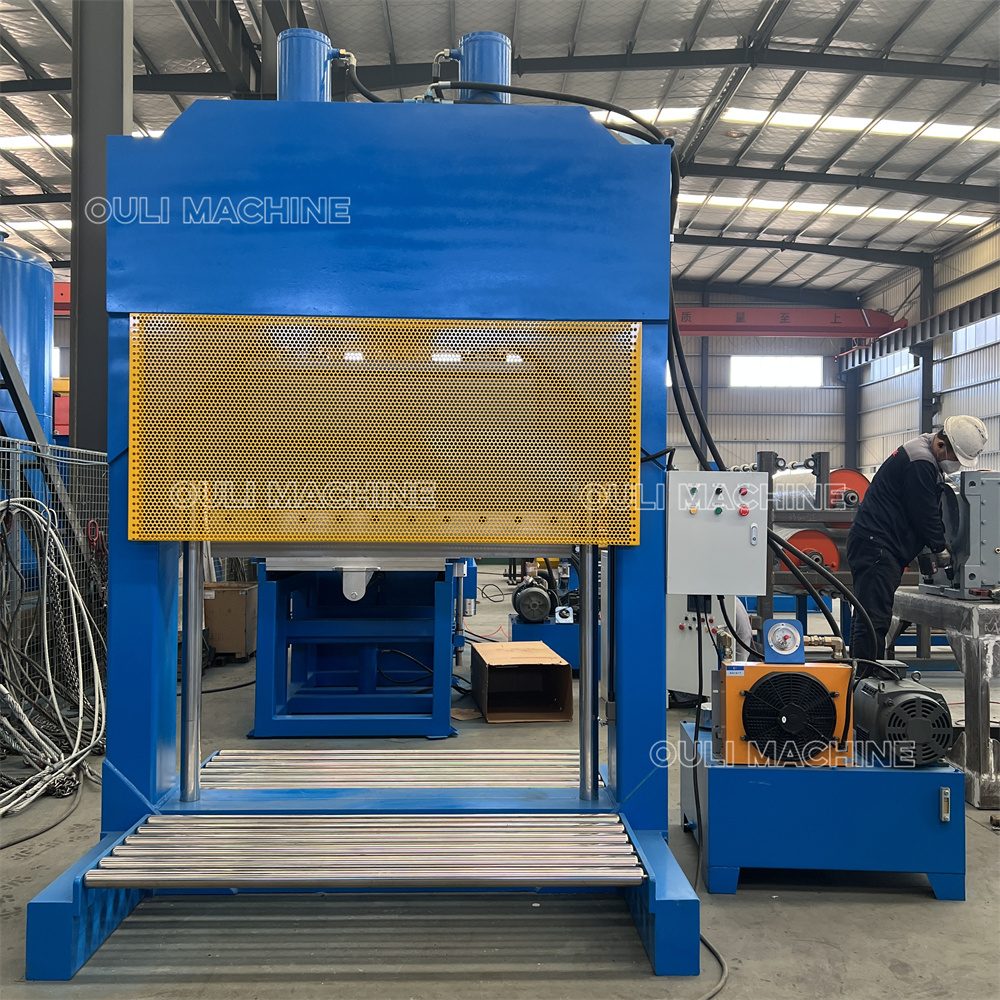

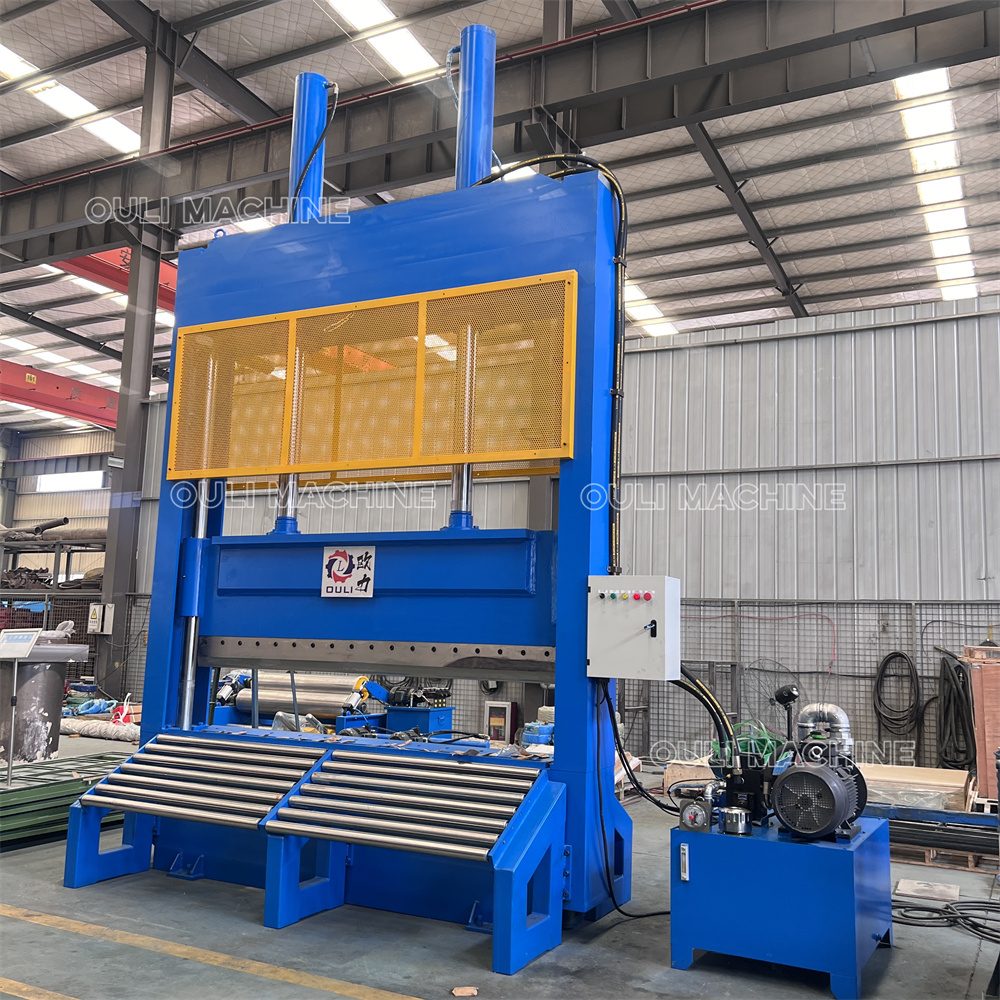

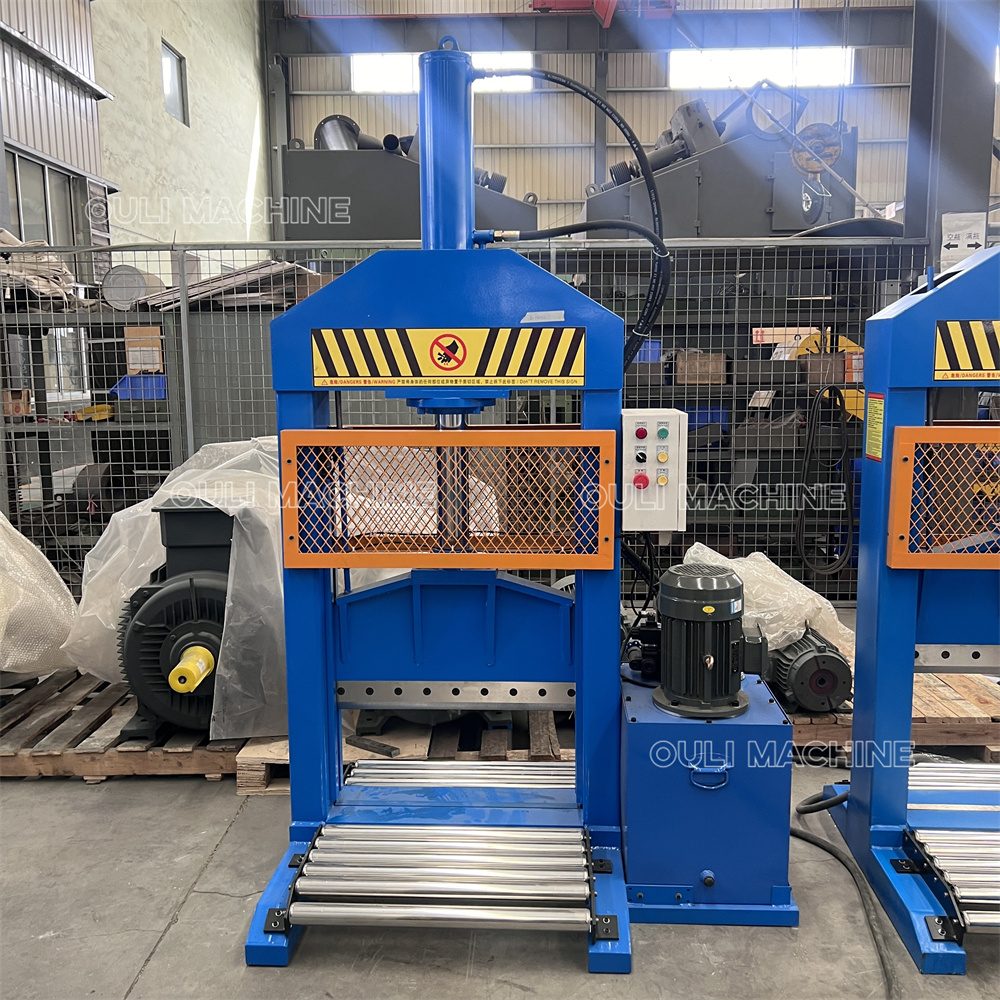

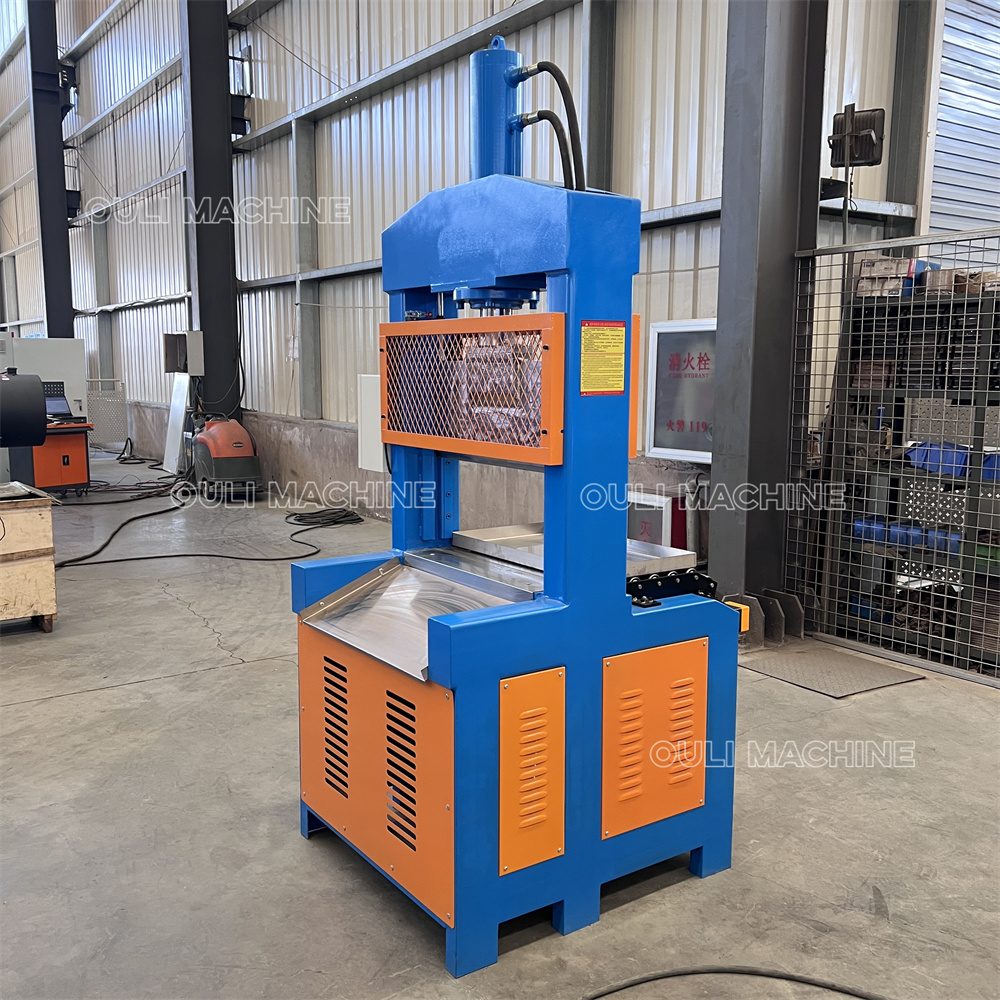

Hydraulic Cutter Machine

Hydraulic Cutter Machine
Hydraulic rubber cutter machine is a critical piece of equipment at the front end of rubber processing production lines. It is specifically designed to rapidly and precisely cut large blocks, chunks, or strips of raw rubber into uniform sizes suitable for feeding into internal mixers or open mills.
With its high efficiency, safety, and precision, it replaces the dangerous and inefficient manual cutting of rubber, serving as the first step toward achieving automated and standardized feeding in modern rubber factories.
CONTACT US

Technical Parameters

Model

XQL-25

XQL-50

XQL-100

Cutting pressure

25Ton

50Ton

100 Ton

Knife width

660mm

1000mm

1500mm

Piston stroke

600mm

680mm

1000mm

Diameter of piston

125mm

125mm

120mm

Piston quantity

1

2

2

Time take by the piston stroke

16-25s

10-16s

10-16s

Power

4KW

5.5KW

7.5KW

Weight

1500kg

2500kg

6500kg

Advantage and Main Feature

1.Cutting blade material: SDK-11, international top grade , longer using life


2.The machine adopts a Solid Work design, with an overall structure superior to conventional safety systems.


3.Double hydraulic cylinder design ensures more stable pressure.

FAQ

Q:

Will you offer the pre-sales service?

A:
Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water, electrical,
machine layout in factory, etc.
Q:

What about the after-sales service? Will you send your engineer to my country to help commission and installation?

A:
Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
OULI will send engineer to set up and supply training works if customer need (Extra cost) .
Q:

What is the warranty of the machine ?

A:
The warranty period of whole machine is 12 months and key parts will be depended.
Technical support will be supplied within 24 hours by E-mail or online video if any problem.
