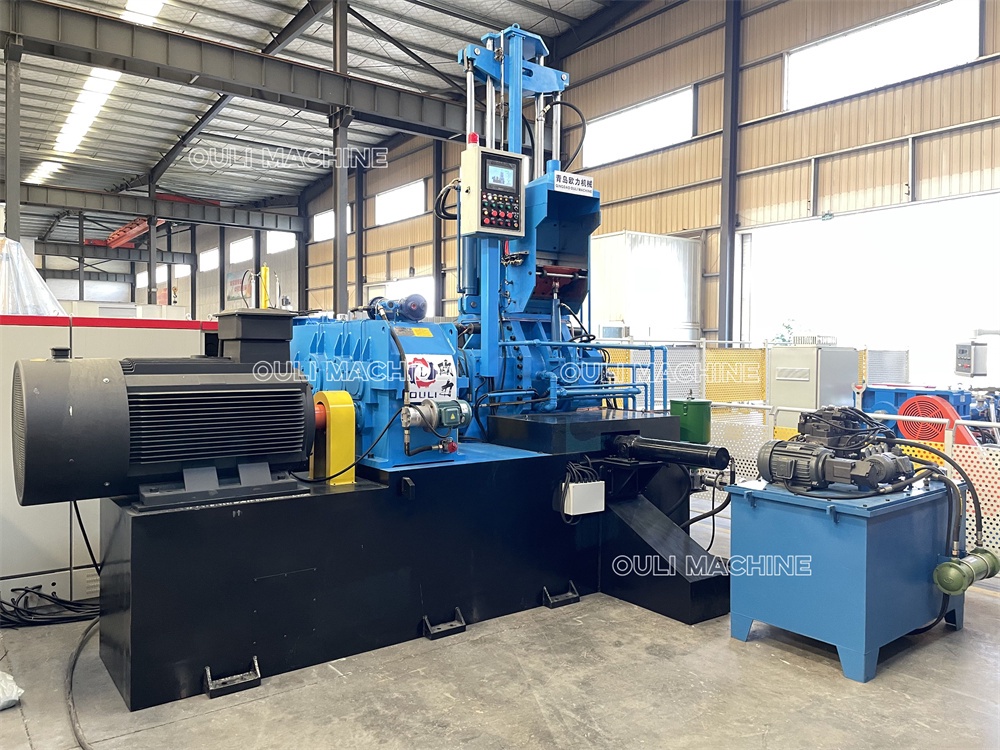

Babury rubber mixer
The Banbury Mixer Type Rubber Kneader is the industry-standard workhorse for high-volume, high-quality compounding where consistent dispersion and efficient production are critical. It efficiently blends raw polymers, fillers, oils, and chemicals into a uniform, homogeneous mass through powerful mechanical shear and heat.
CONTACT US

Technical Parameters

Model

XSM-50

XSM-80

XSM-90

XSM-110

XSM-160

Total volume of mixing chamber(L)

60

120

90

165

240

Working volume of mixing chamber(L)

50

80

60

110

160

Driving motor power(KW)

90

185

400

280

400

Front rotational speed of the rotor(RPM)

40

40

40

40

40

Speed ratio of rotors

1:1.2

1:1.2

1:1.2

1:1.2

1:1.2

Consumption of cooling water(M³/hour)

20

25

35

35

50

Weight (Ton)

10

16.5

22

22.5

39

Advantage and Main Feature

1.High-Efficiency Mixing: Powerful rotors and a pressurized ram ensure fast incorporation of ingredients (polymers, fillers, oils, chemicals).


2.Superior Dispersion: Exceptional for breaking down and dispersing carbon black and other additives uniformly.


3.Intensive Shear & Kneading: Intermeshing rotors generate the shear necessary for optimal compound development.


4.Batch Consistency: Ensures each batch meets identical specifications, crucial for quality control.


5.Sealed Chamber: Contains dust and fumes, improving the working environment and reducing material loss.


6.Time & Energy Efficient: Significantly faster than traditional open mills for most compounding tasks.


7.PLC control system: Standard equipped with Siemens PLC control system for automated and efficient operating and mixing.


FAQ

Q：

Will you offer the pre-sales service?

A：
Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water, electrical,
machine layout in factory, etc.
Q：

What about the after-sales service? Will you send your engineer to my country to help commission and installation?

A：
Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
OULI will send engineer to set up and supply training works if customer need (Extra cost) .
Q：

What is the warranty of the machine ?

A：
The warranty period of whole machine is 12 months and key parts will be depended.
Technical support will be supplied within 24 hours by E-mail or online video if any problem.
