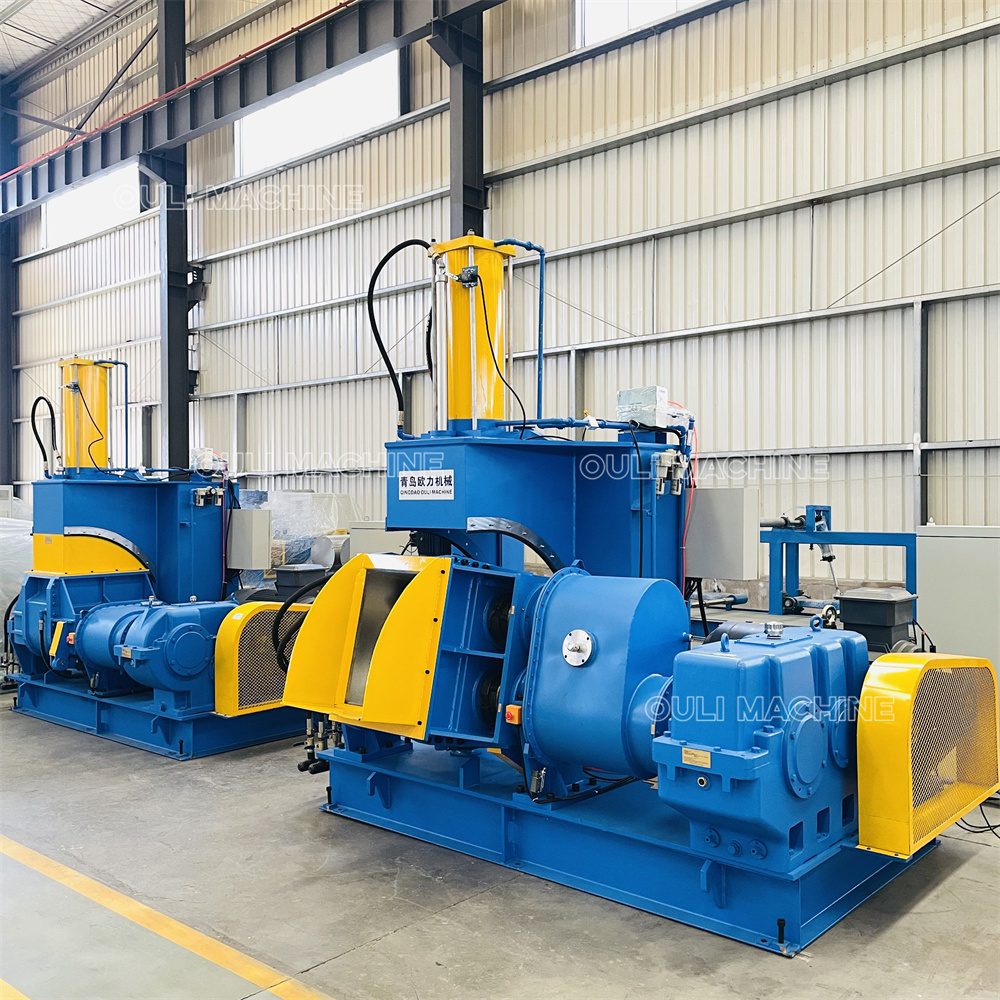

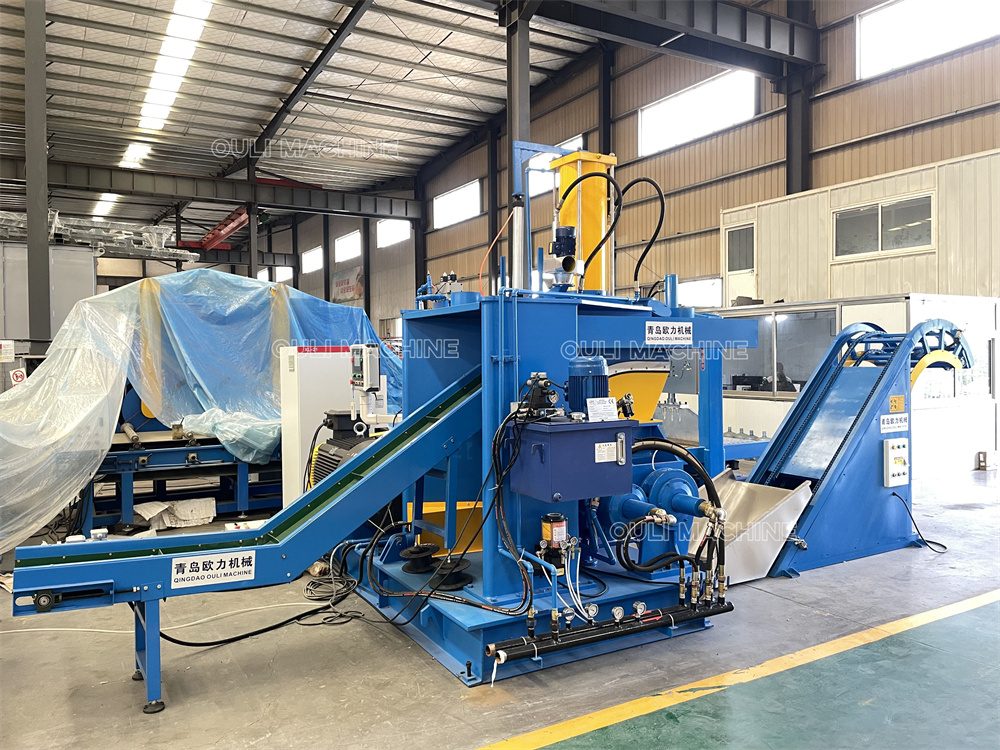

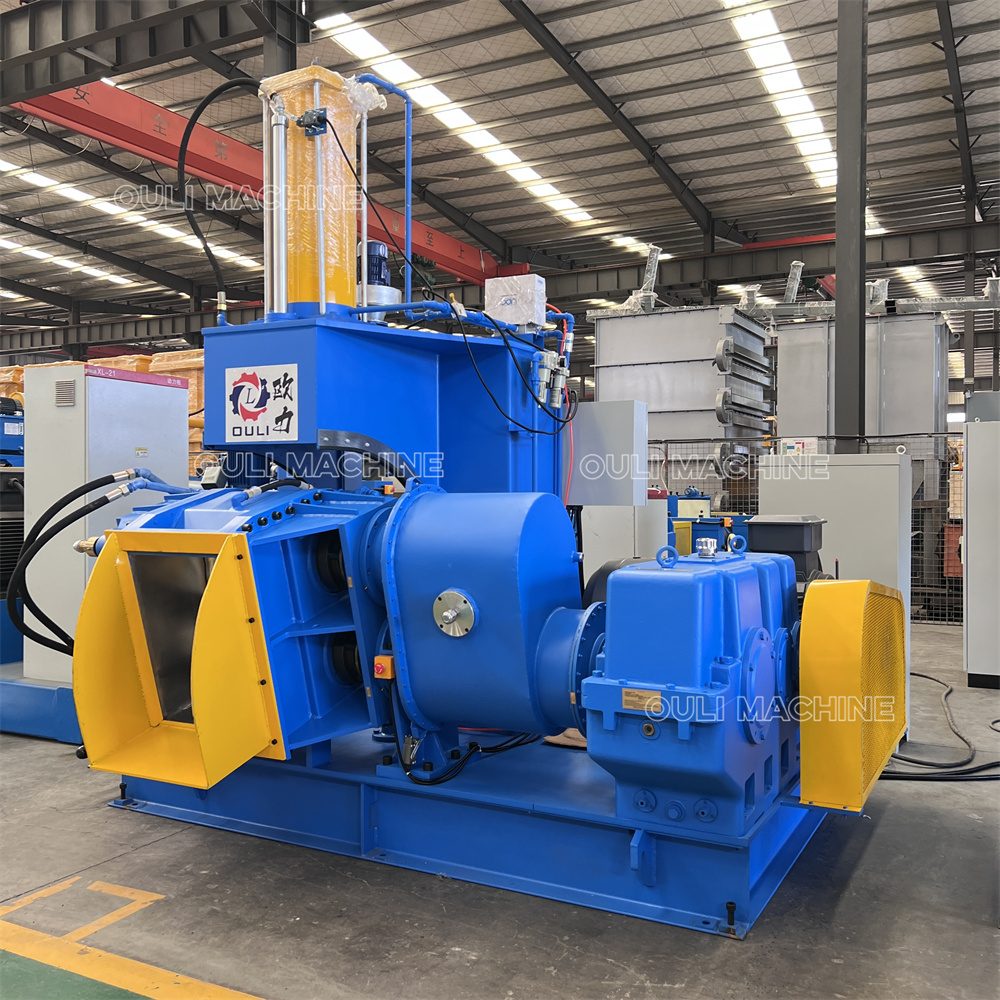

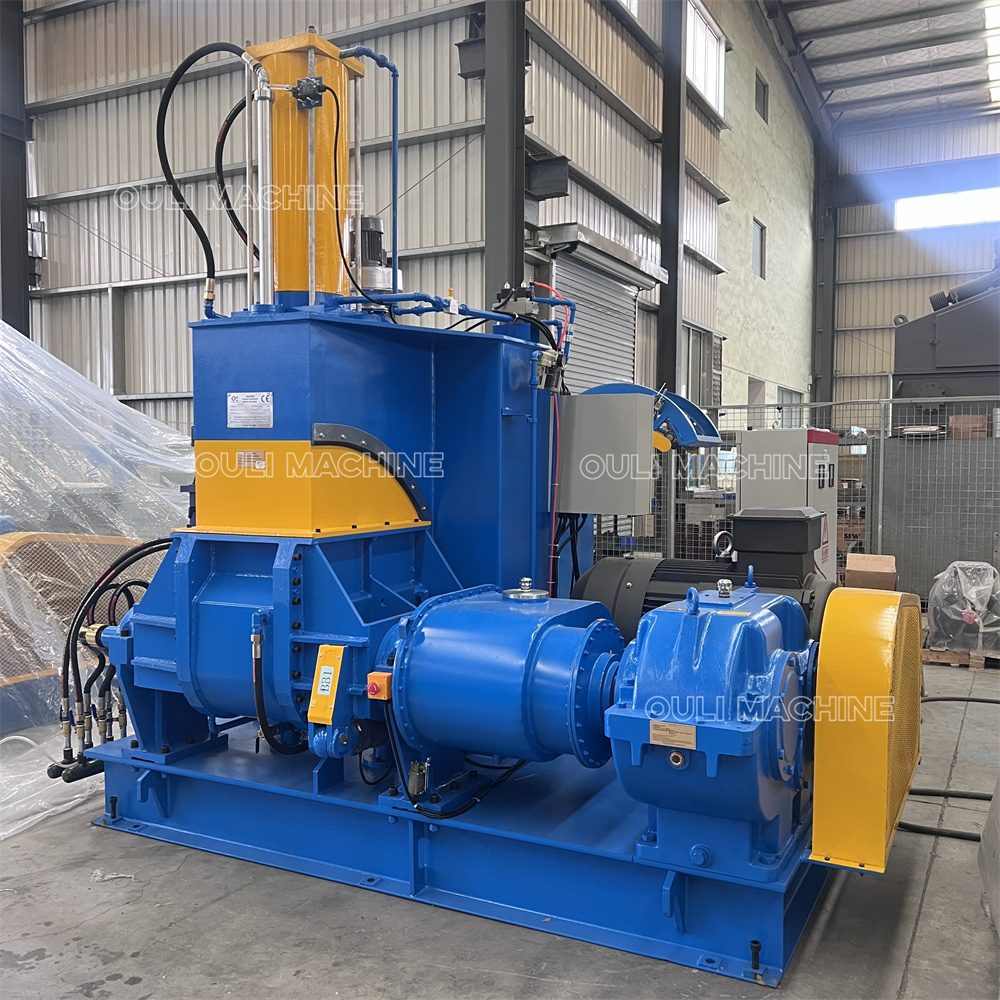

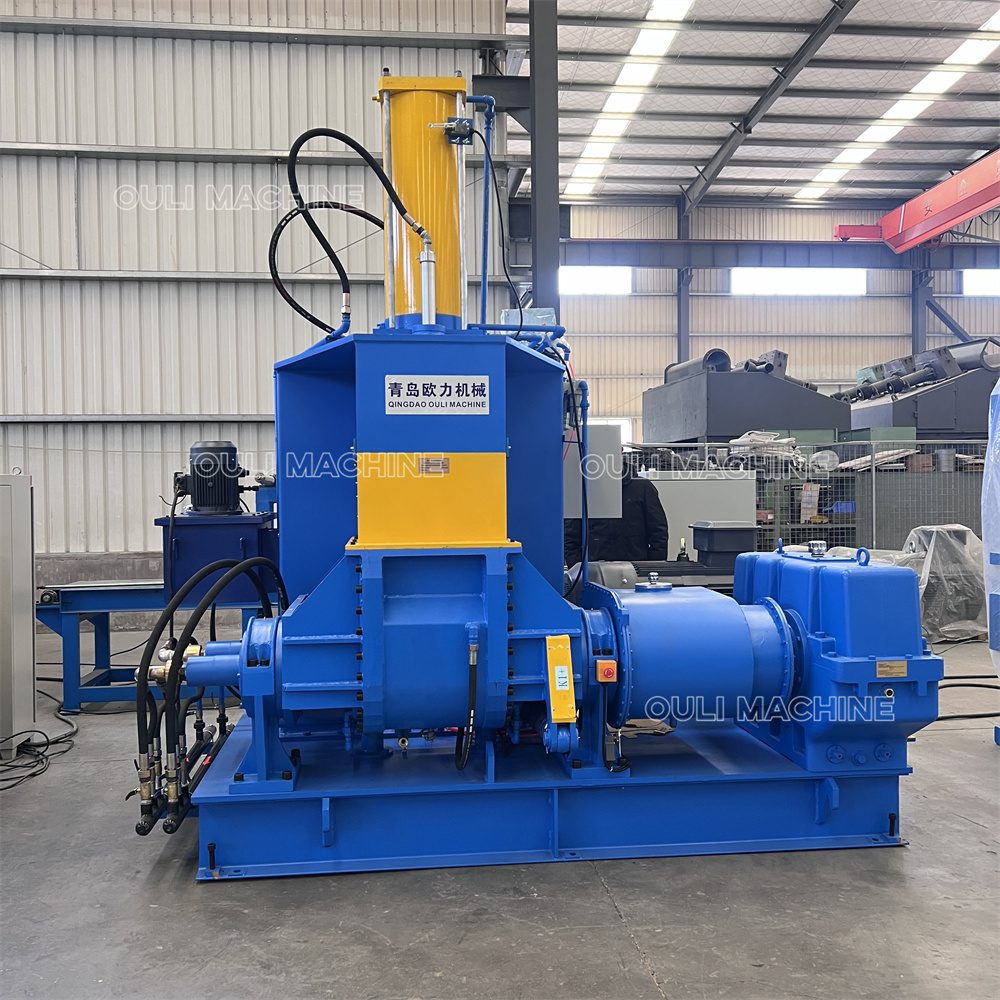

Pneumatic ram rubber kneader machine
Pneumatic Top Ram Type Rubber Kneader Mixer , mainly for rubber or plastic compound, with great advantages such as compact structure, simple operation, and stable performance, widely used for producing compounds for tires, automotive parts, industrial rubber goods, seals, hoses, and others.
CONTACT US

Technical Parameters

Parameter/model

X(S)N-3

X(S)N-5

X(S)N-10

X(S)N-20

X(S)N-35

X(S)N-55

X(S)N-75

X(S)N-90

X(S)N-110

X(S)N-150

X(S)N-200

X(S)N-250

X(S)N-300

Total volume (L)

8

15

25

45

80

125

175

210

250

325

500

600

700

Working volume (L)

3

5

10

20

35

55

75

90

110

150

200

250

300

Driving motor power (KW)

7.5

11

18.5

30

55

75

110

132

185

220

280

315

400

Tilting angle(°)

140

140

140

140

140

140

140

140

140

140

140

140

140

Rotor speed(r/min)

32/25

32/25.8

32/25

32/26.5

32/24.5

32/26

32/26

32/26

30/24.5

30/24.5

30/24.5

32.5/27

35/29

Pressure of compressed air (MPa)

0.5-0.8

0.5-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

0.6-0.8

Capacity of compressed air (m³/min)

≧0.3

≧0.5

≧0.5

≧0.7

≧0.9

≧1.0

≧1.3

≧1.5

≧1.6

≧2.0

Hydraulic

Hydraulic

Hydraulic

Pressure of cooling water(MPa)

0.2-0.4

0.2-0.4

0.2-0.4

0.2-0.4

0.3-0.4

0.3-0.4

0.3-0.4

0.3-0.4

0.3-0.4

0.3-0.4

0.2-0.4

0.2-0.4

0.2-0.4

Weight (KG)

2000

2100

3000

4437

6500

7850

10230

12000

14200

19500

23000

26000

29000


Advantage and Main Feature

1.Rotor: Rotor shaft material  42CRMO with hardness HRC58-62.

Blade material is ZG-45 with chrome-plating, hardness up to HRC50.

Also have welded alloy rotors as option.


2.Mixing chamber /Top ram: Medium-carbon steel welding with chrome-plated 12-18 layers, hardness up to HRC50.


3.Ratio gear: 42CRMO cast alloy steel, forged parts with quenching and tempering treatment,

high-frequency quenching, hardness  HRC58-62, Low noise, wear -resistant, longer use life.


4.Gear box (reducer): Adopt hard tooth surface reducer, with strong carrying capacity, low noise, smooth running,

high transmission efficiency and long service life.


5.Sealing system: High technology sealing system, no powder leak, easy to change


6.PLC control system: All with Siemens PLC control system for automated and efficient mixing.


7.About mxing chamber , standard open type is by hydraulic , we also have motorized as optional


8.Heating and cooling : Machine with water cooling system for mixing chamber , rotary, top ram ;

Heat: we can design it will electric ,steam or oil for heating , especially for mixing plastic PE.


FAQ

Q：

Will you offer the pre-sales service?

A：
Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water, electrical,
machine layout in factory, etc.
Q：

What about the after-sales service? Will you send your engineer to my country to help commission and installation?

A：
Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
OULI will send engineer to set up and supply training works if customer need (Extra cost) .
Q：

What is the warranty of the machine ?

A：
The warranty period of whole machine is 12 months and key parts will be depended.
Technical support will be supplied within 24 hours by E-mail or online video if any problem.
