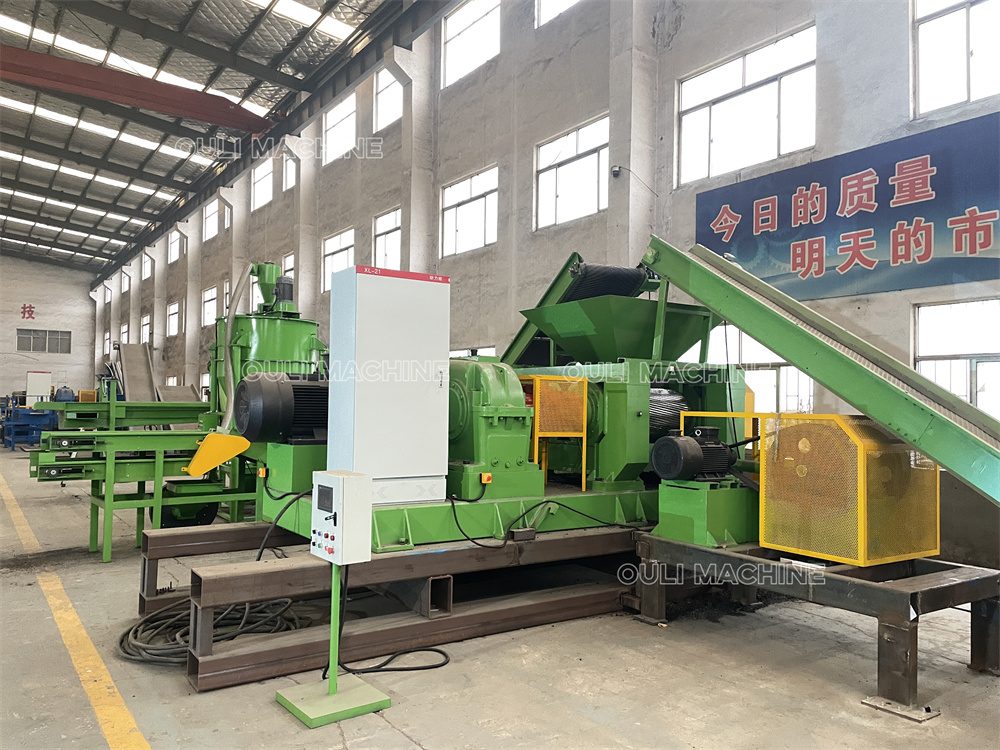

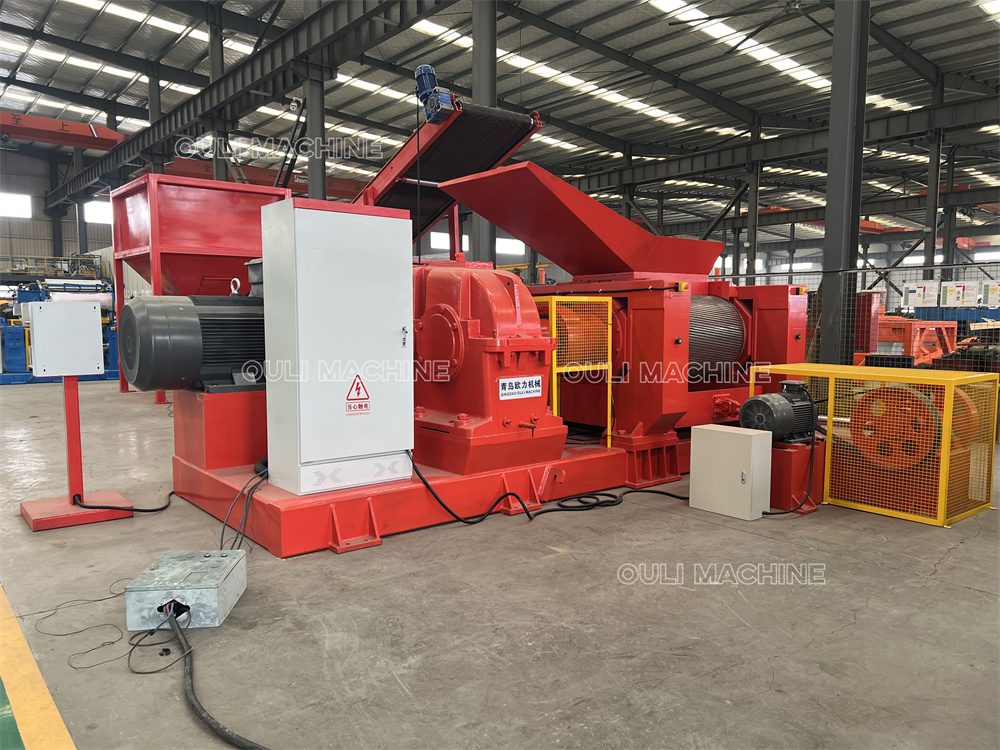

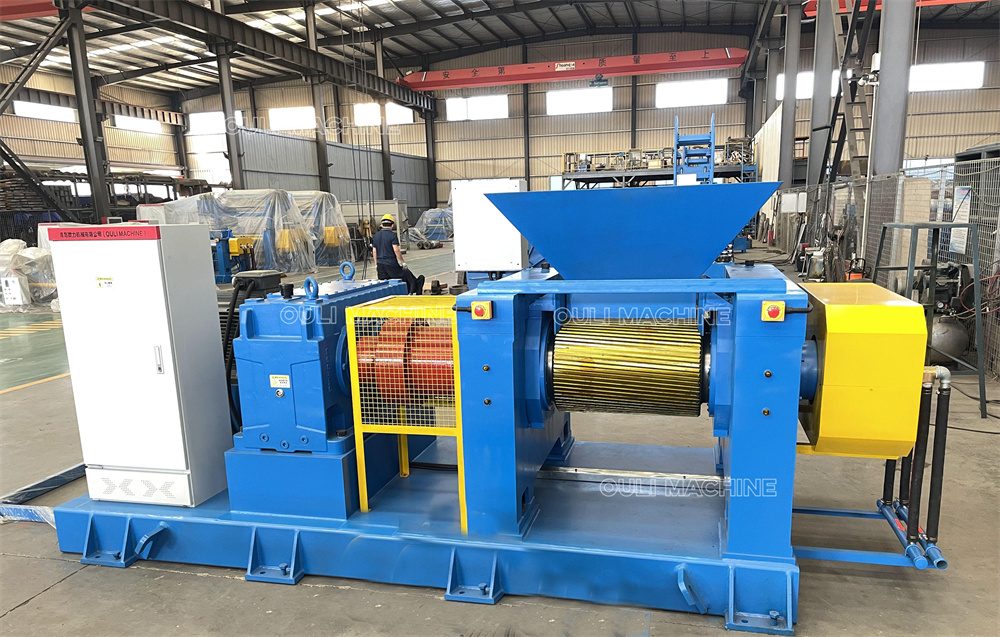

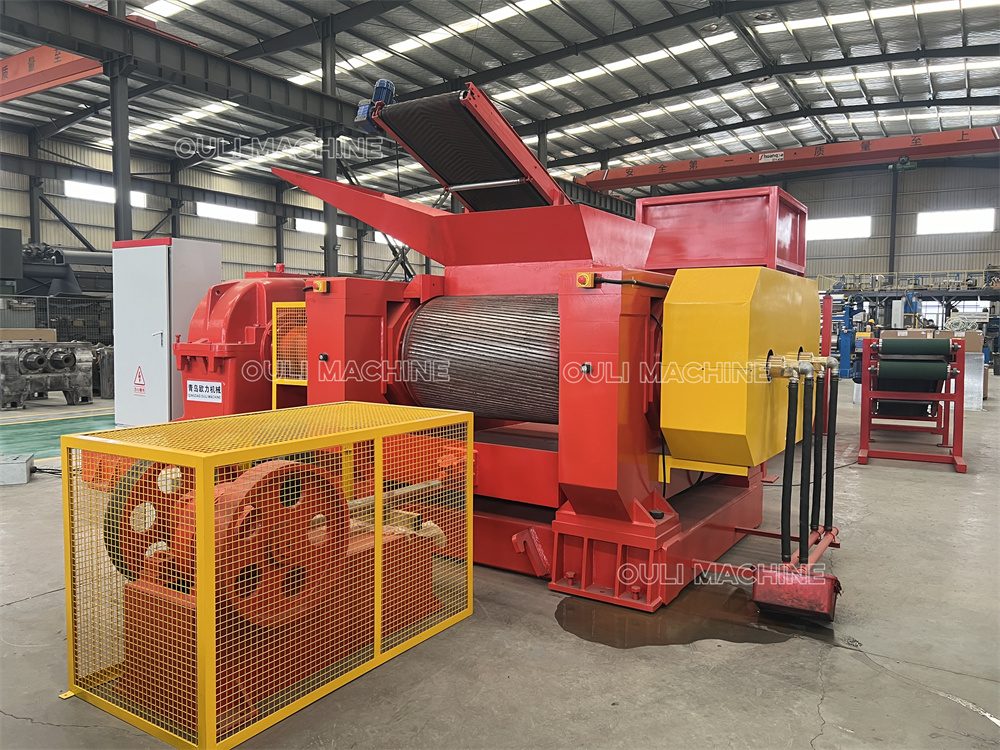

Rubber Cracker Mill

Rubber Cracker Mill
Rubber cracker mill are used for crushing and grinding scrap tires, rubber powder, and rubber scraps.
It is widely used in waste tire recycling plants, reclaimed rubber factories.
CONTACT US

Technical Parameters

Model

PJ-16

PJ-18

PJ-22

PJ-24

PJ-26

PJ-31

Roll diameter(mm)

400

450

560/510

610/560

660/610

810/710

Roll working length(mm)

600

650

800

1000

1100

1200

Speed ratio

1:1.27

1:1.27

1:1.3

1:1.5

1:1.5

1:1.5

Min output powder

40目/40mesh,0.4mm

Power(KW)

45

55

110

185

220

280

Capacity(kg/h)

200

300

500-1000

1500

2000

2500-3000

Weight(KG)

8000

12000

20000

24000

30000

35000

Advantage and Main Feature

1.Roller : we have cast iron and cast steel type ,as you can weld it by yourself after using for some time.


2.The roller is made of LTG-H chromium-molybdenum or low nickel-chromium alloy chilled castiron, centrifugally cast, the hardness of the chilled layer on the surface of the roller can reach75HSD and the depth of the chilled layer is 15-20mm


3.Reducer: We adopt China top brand hard gear reducer , such as GUOMAO KAIBO brand


4.Automatic self-aligning ball type bearing , wih automatic lubrication system

FAQ

Q:

Will you offer the pre-sales service?

A:
Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water, electrical,
machine layout in factory, etc.
Q:

What about the after-sales service? Will you send your engineer to my country to help commission and installation?

A:
Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
OULI will send engineer to set up and supply training works if customer need (Extra cost) .
Q:

What is the warranty of the machine ?

A:
The warranty period of whole machine is 12 months and key parts will be depended.
Technical support will be supplied within 24 hours by E-mail or online video if any problem.
