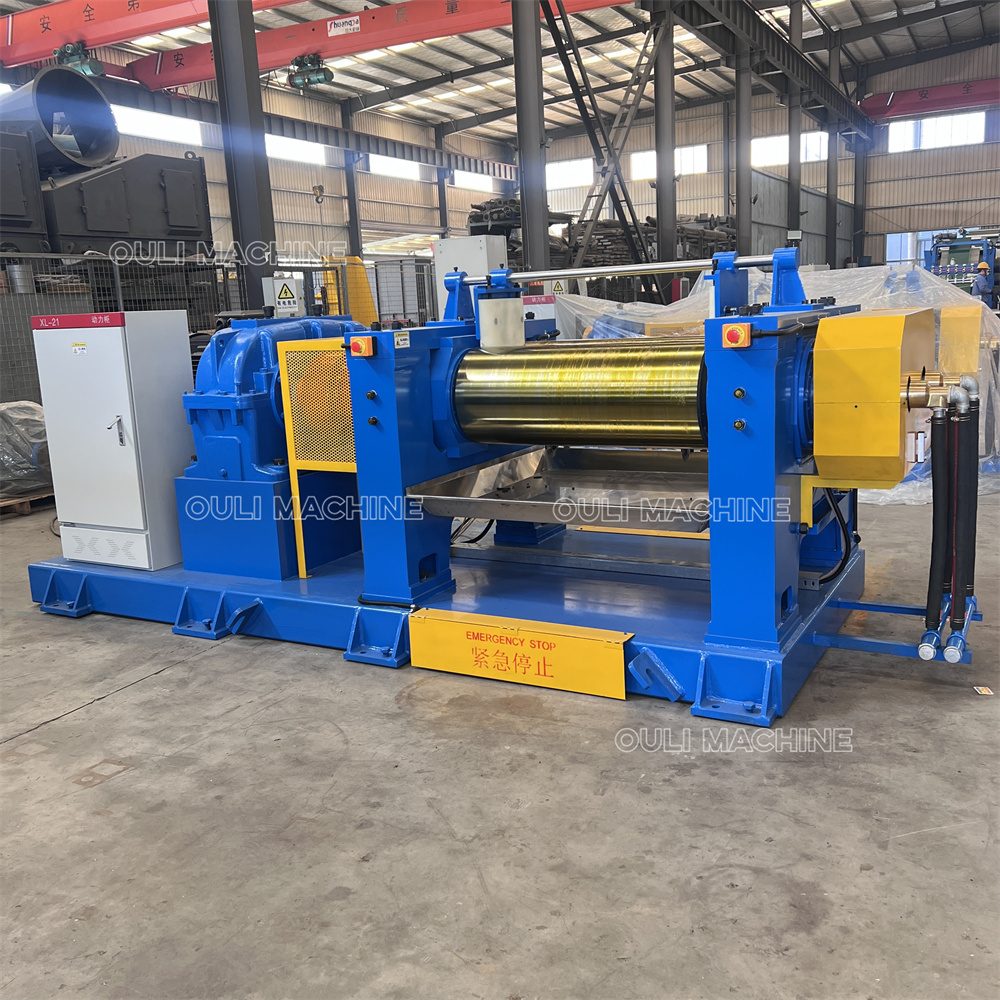

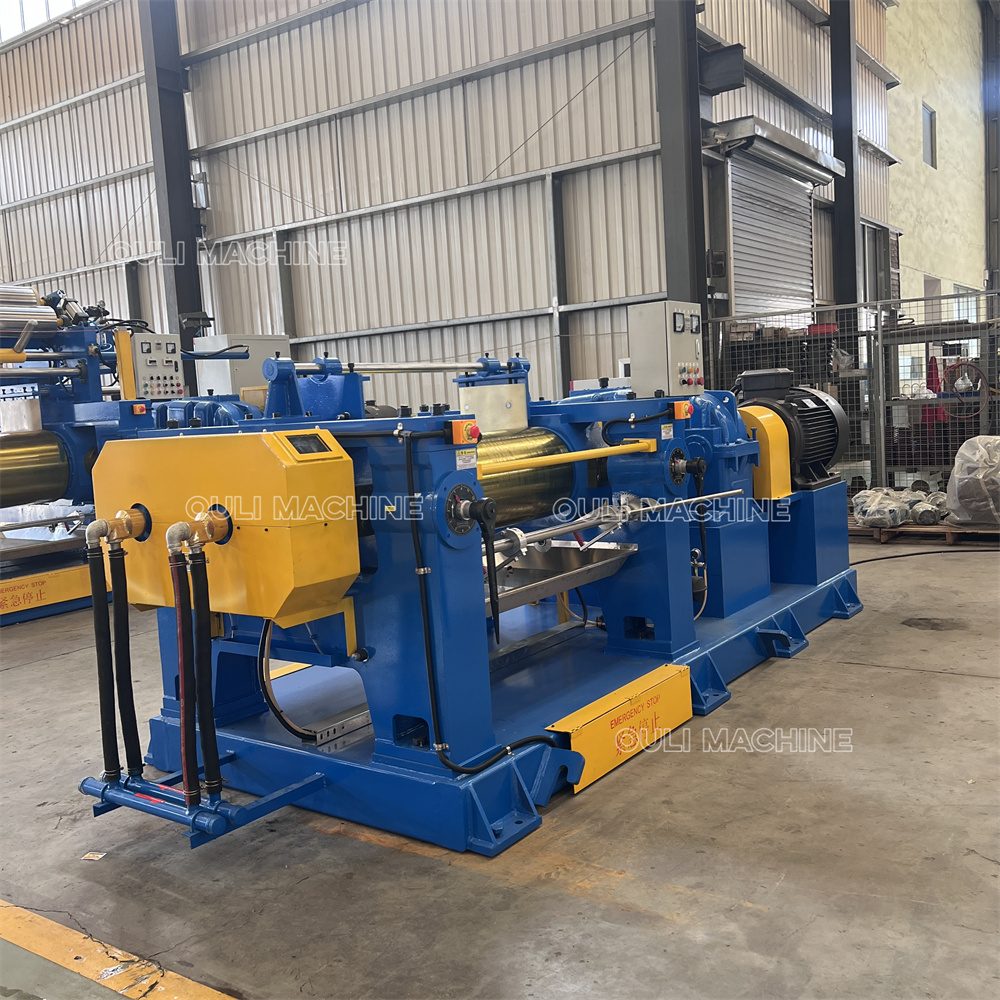

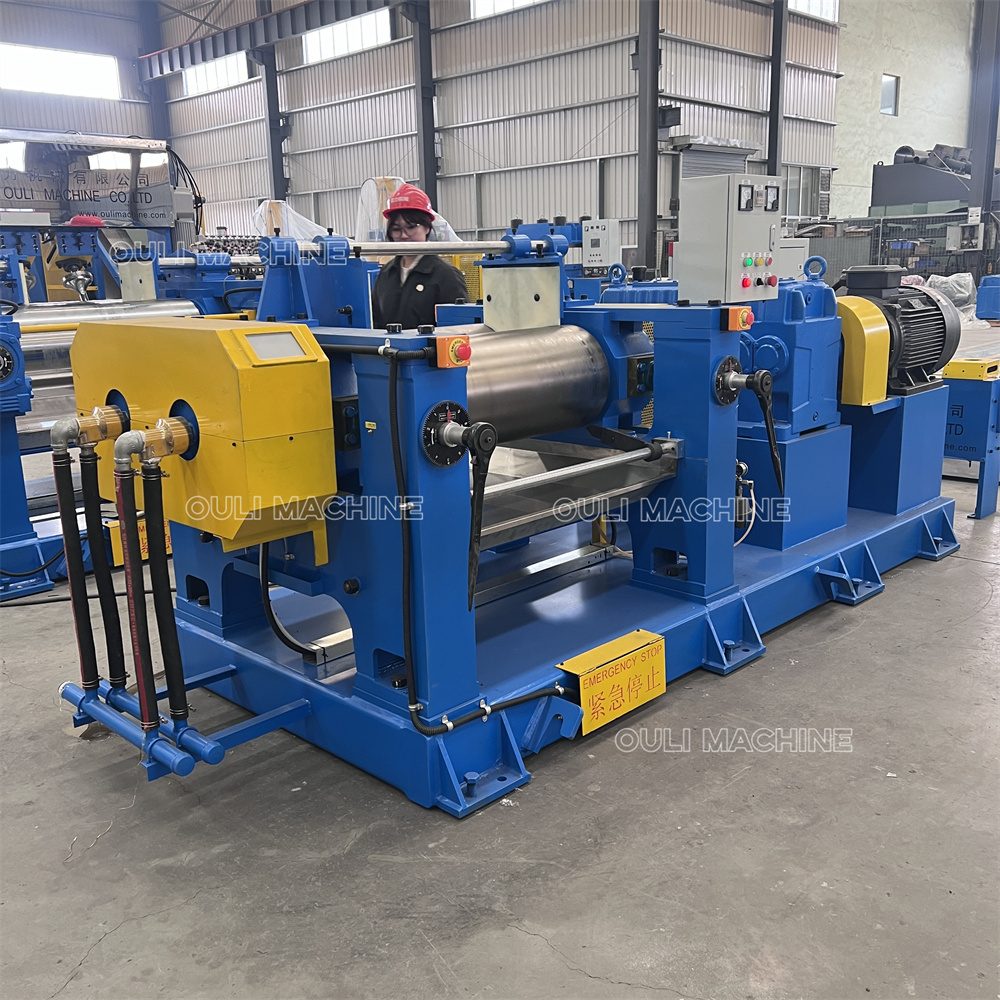

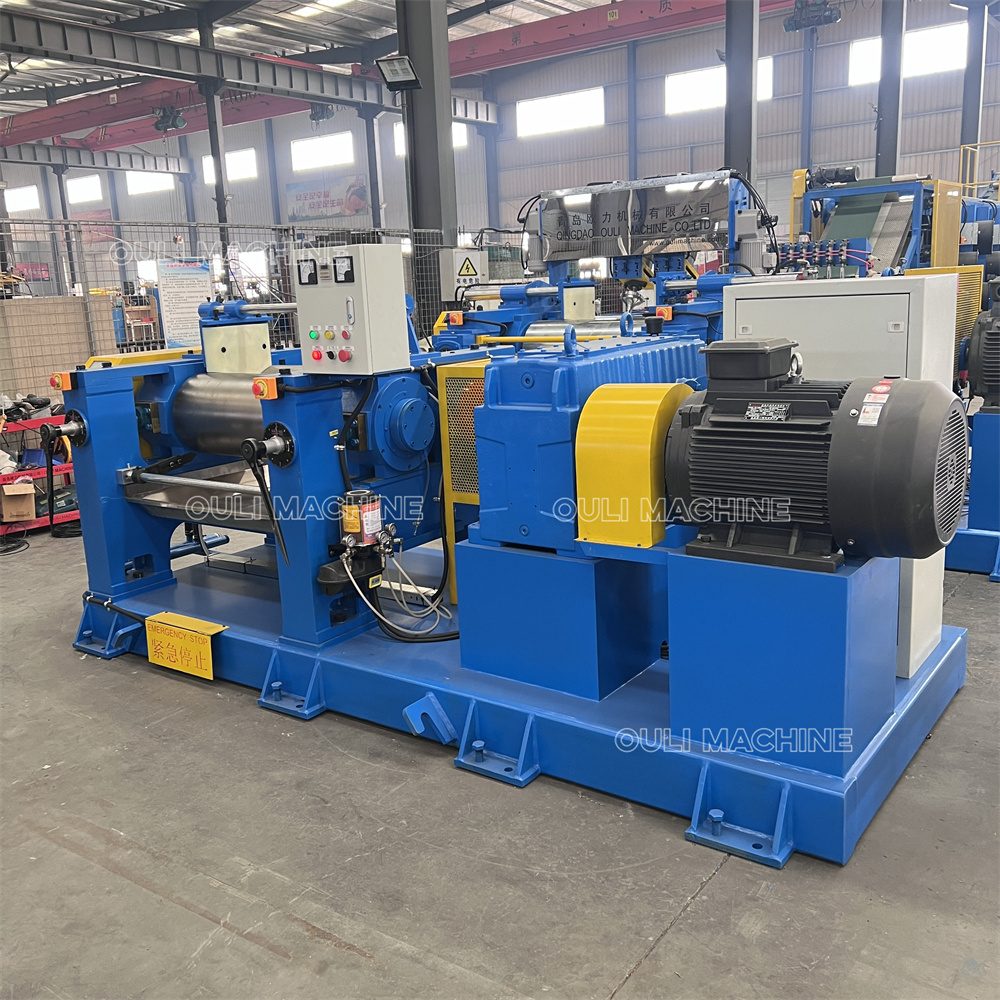

Standard rubber mixing mill
Two roll rubber mixing mill mainly used for plasticizing natural rubber in rubber product factories, mixing raw rubber with additives, or for heat refining of rubber compounds and pressing of rubber sheets. This machine is applicable to reclaimed rubber factories, conveyor belt factories, rubber product factories, shoe factories, cable factories, rubber hose factories, sealing parts and other rubber-related industries.
CONTACT US

Technical Parameters

Model

X(S)K-160

X(S)K-200

X(S)K-250

X(S)K-300

X(S)K-360

X(S)K-400

X(S)K-450

X(S)K-560

X(S)K-610

X(S)K-660

Roll Size(mm)

φ160*320

φ200*400

φ250*620

φ300*750

φ360*900

φ400*1000

φ450*1200

φ560*1530

φ610*1830

φ660*2130

Front Roll Speed(m/min)

7.4

9.6

12.5

15.1

18.1

19.8

22.25

28.1

28.4

29.8

Roll Speed Ratio

1:1.35

1:1.3

1:1.25

1:1.25

1:1.25

1:1.27

1:1.27

1:1.25

1:1.18

1:1.09

Capacity(kg/batch)

4

10

15-20

25

25-35

45

70

135

180-200

250-300

Motor Power(KW)

5.5

7.5

18.5

22

30

37/45

55

110

160

250

Weight(KG)

956

2700

3500

4500

6500

8000

12000

20000

27000

43000

Advantage and Main Feature

1.Roller: With hollow inside, made of LTG-H chrome-molybdenum alloy cold cast iron,surface hardness 72-75HSD,

Also we have chrome-coated roller, mirror-finished rollers, and drilled rollers as options.

2.Rolling bearing: China top brand ZWZ, automatic aligning design, with high carrying capacity,

energy saving more than 5% than the traditional nylon bush .

3.Bearing lubrication: All with automatic dry oil lubrication system

4.Nip adjustment device: Standard by manual, also we have electric/motorized or hydraulic roller nip adjustment system.

5.Ratio gear: alloy steel (ZG-45) casting, after grinding, high-frequency quenching, the hardness is HRC58-62, low noise ,wear-resisting, long service life .

6.Gear box (reducer): hard tooth surface reducer, adopt top brand in china, with four-axis three-stage transmission, the safety factor is above 2.0.

7.The frame and base: welding and annealed, processed by precision machine. Steel thickness≥40mm.

8.Stock guide: Standard with manual control, movable. The material is MC nylon.

Option with hydraulic stock guide system for automatic control.

9.Safety Device: Standard with 4 emergency stop buttons on both sides of the machine, and one on electrical control panel; kick stop device.

Option with chest bump emergency stop, pull-rod emergency stop, safety light curtains, etc.

10.Other options: Frequency inverter system, automatic mixer device, stock blender device, pneumatic rubber cutter, PLC and touch screen system, roller temperature measuring, Schneider Electric, space-saving design, etc.

FAQ

Q：

Will you offer the pre-sales service?

A：
Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water, electrical,
machine layout in factory, etc.
Q：

What about the after-sales service? Will you send your engineer to my country to help commission and installation?

A：
Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
OULI will send engineer to set up and supply training works if customer need (Extra cost) .
Q：

What is the warranty of the machine ?

A：
The warranty period of whole machine is 12 months and key parts will be depended.
Technical support will be supplied within 24 hours by E-mail or online video if any problem.
