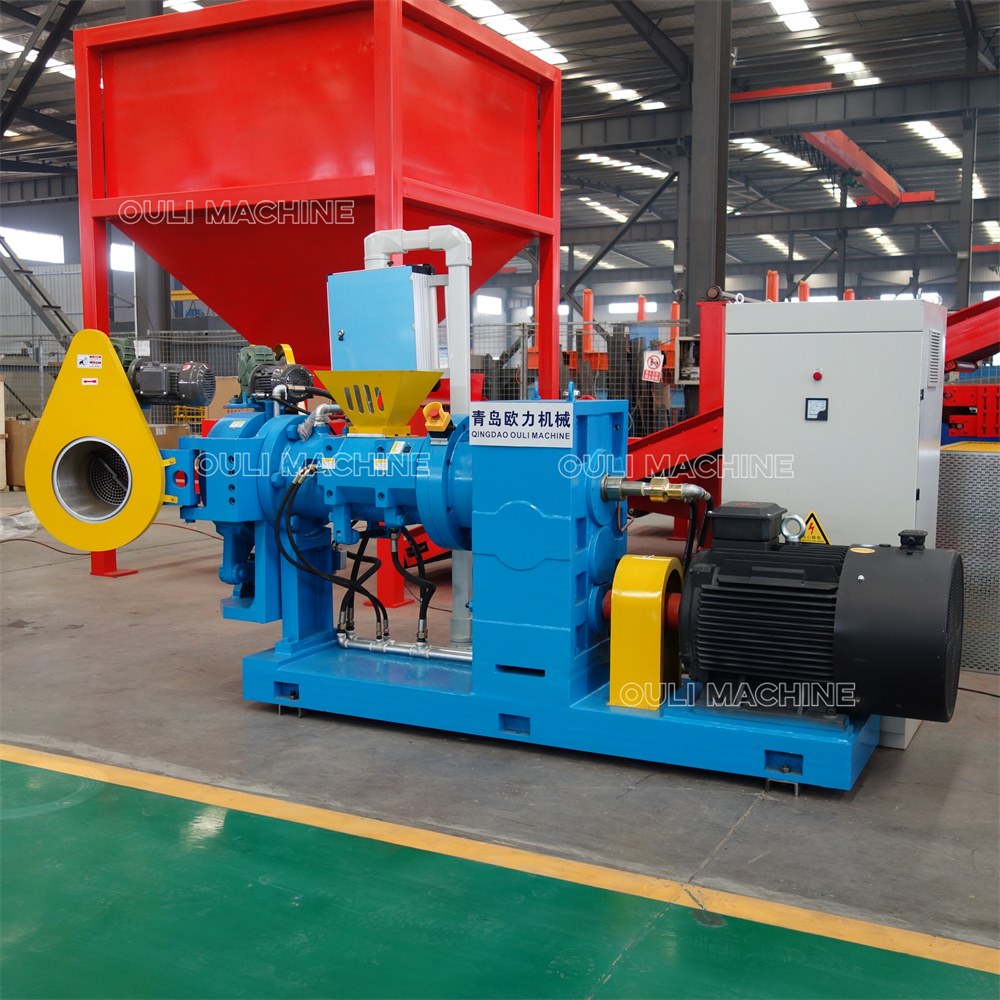

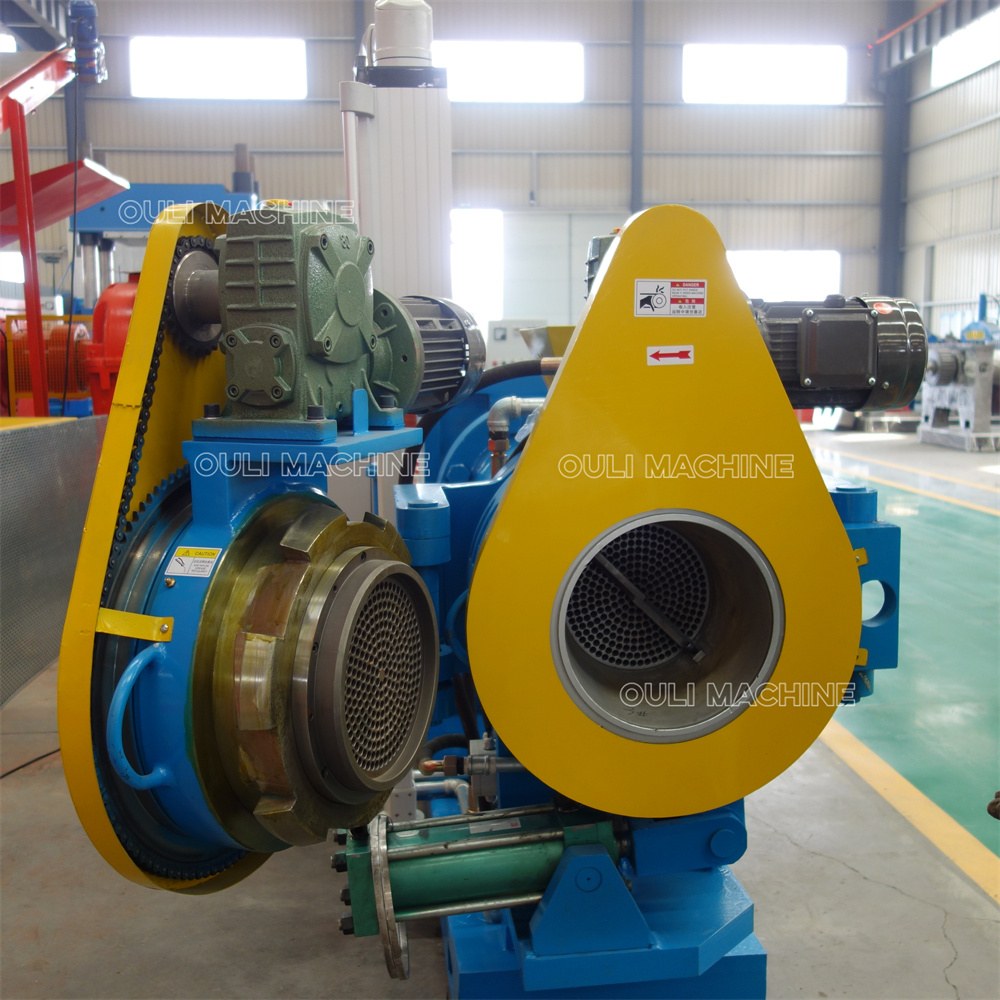

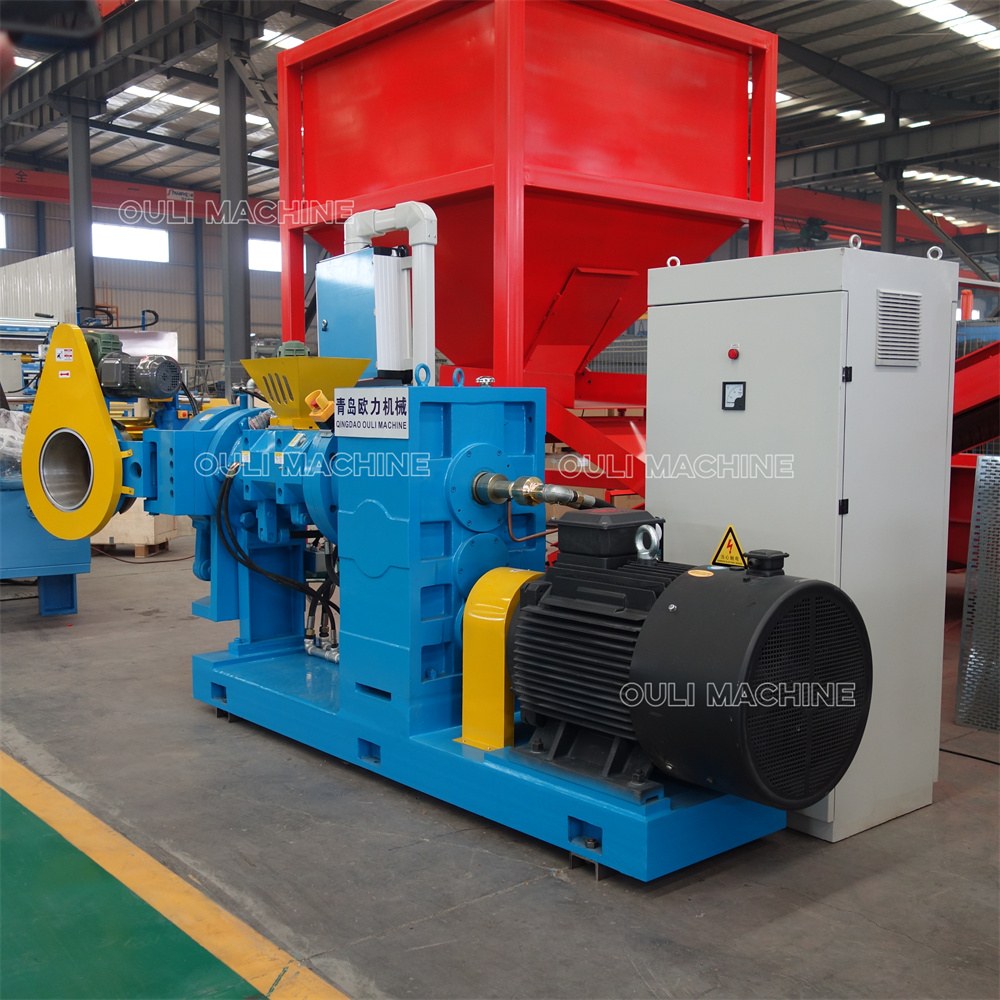

Rubber strainer machine

Rubber strainer machine
Strainer Type Extruder include hot-feed filter extruder (with twin-roll or forced-feed rollers) and cold-feed filter extruder to meet your diverse requirements. Its core function involves forcing the rubber compound through a high-precision filter screen under high pressure to thoroughly remove solid impurities, undispersed compound agglomerates, and scorched particles. This ensures the purity, uniformity, and reliability of the final product, serving as an indispensable quality barrier in the production of high-end rubber goods.
CONTACT US

Technical Parameters

Model

XJD-75

XJD-90

XJD-120

XJD-150

XJD-200

XJD-250

Screw diameter (mm)

75

90

120

150

200

250

L/D

18-14

12-16

12-16

12-18

12-18

12-18

Screw speed (r/min)

0-60

0-60

0-60

0-60

0-60

0-60

Motor power (KW)

37-45

75-90

90-110

200-220

315-355

400-500

Capacity (kg/h)

100-180

250-350

600-800

1000-1500

1600-2500

2800-3500

Total weight (t)

2.1

3

4.2

5.5

9.8

15

Advantage and Main Feature

1.Eliminate product defects: Effectively remove all impurities that may cause sand holes, cracks, or stress concentration points in the finished product, significantly improving yield rates and service life.


2.Protect downstream equipment: Prevent hard contaminants from damaging expensive precision molds, screws, or rollers.


3.High Flexibility: Quickly swap filters of varying precision levels to meet different product grade requirements.

FAQ

Q:

Will you offer the pre-sales service?

A:
Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water, electrical,
machine layout in factory, etc.
Q:

What about the after-sales service? Will you send your engineer to my country to help commission and installation?

A:
Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
OULI will send engineer to set up and supply training works if customer need (Extra cost) .
Q:

What is the warranty of the machine ?

A:
The warranty period of whole machine is 12 months and key parts will be depended.
Technical support will be supplied within 24 hours by E-mail or online video if any problem.
