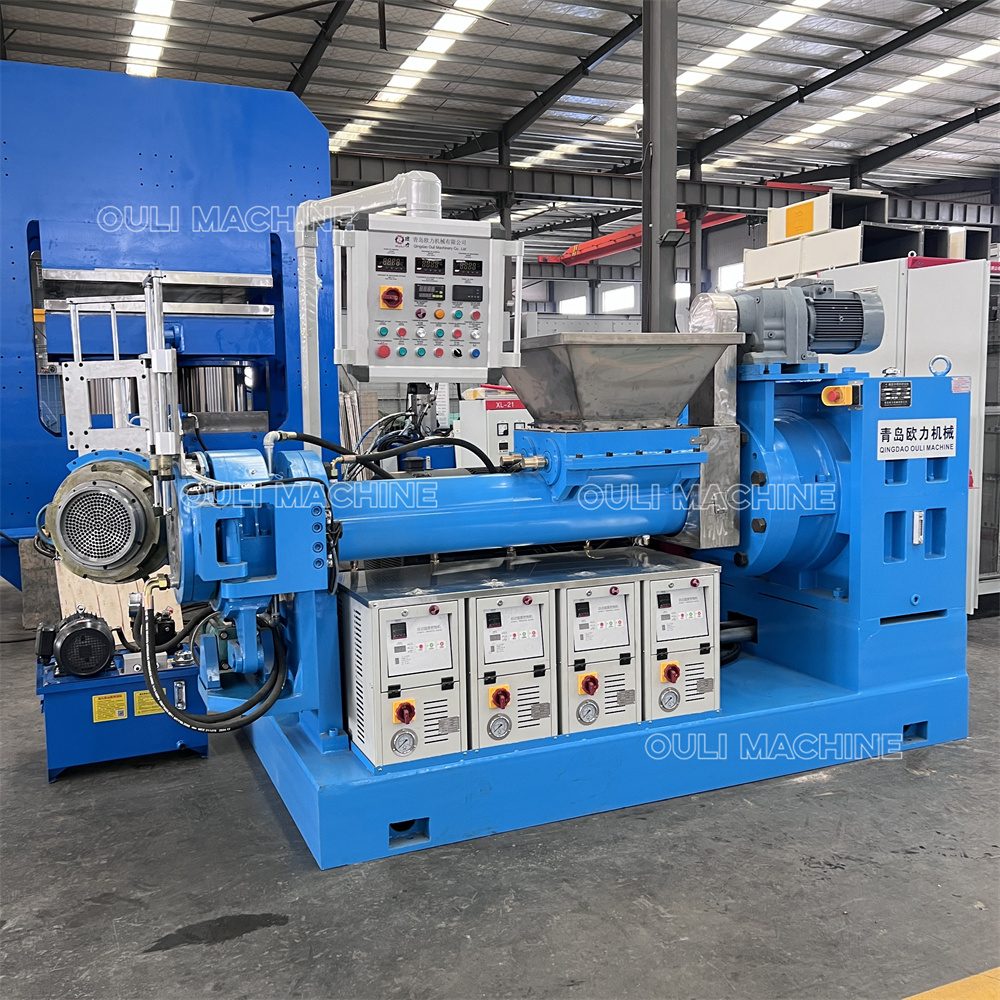

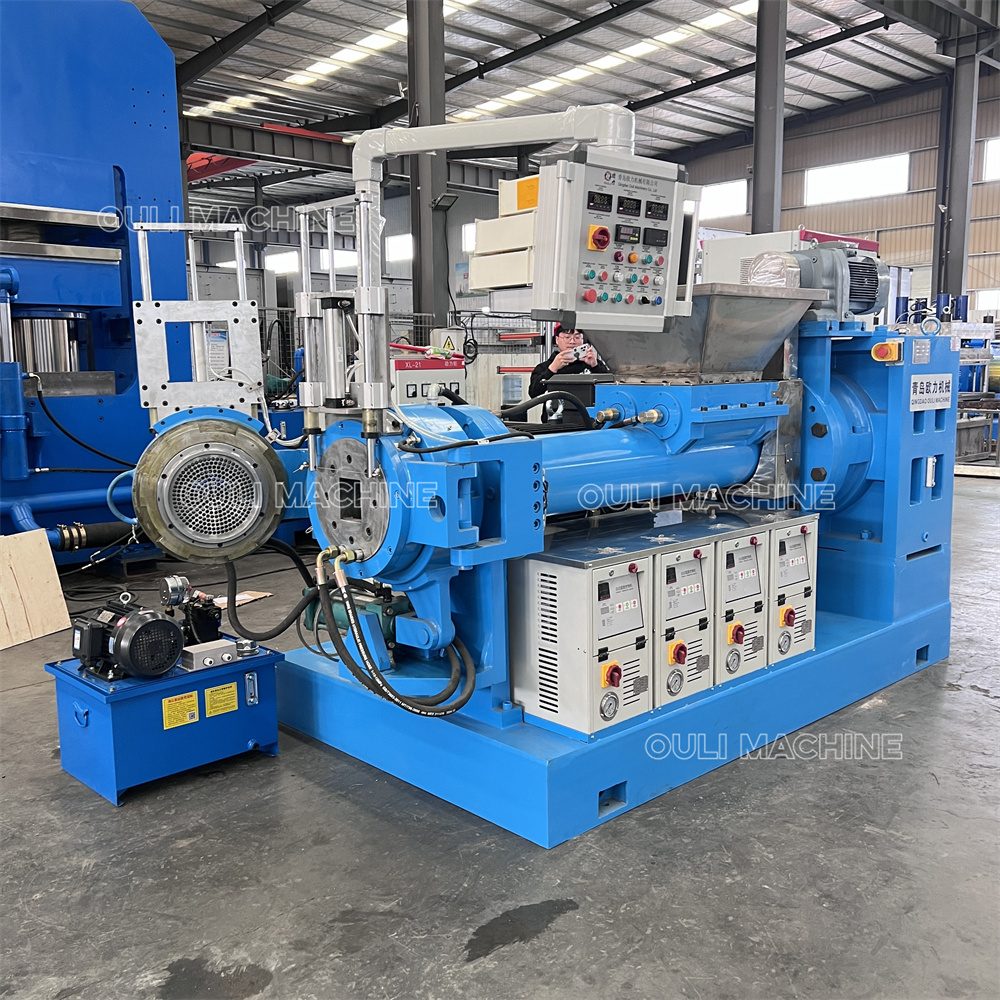

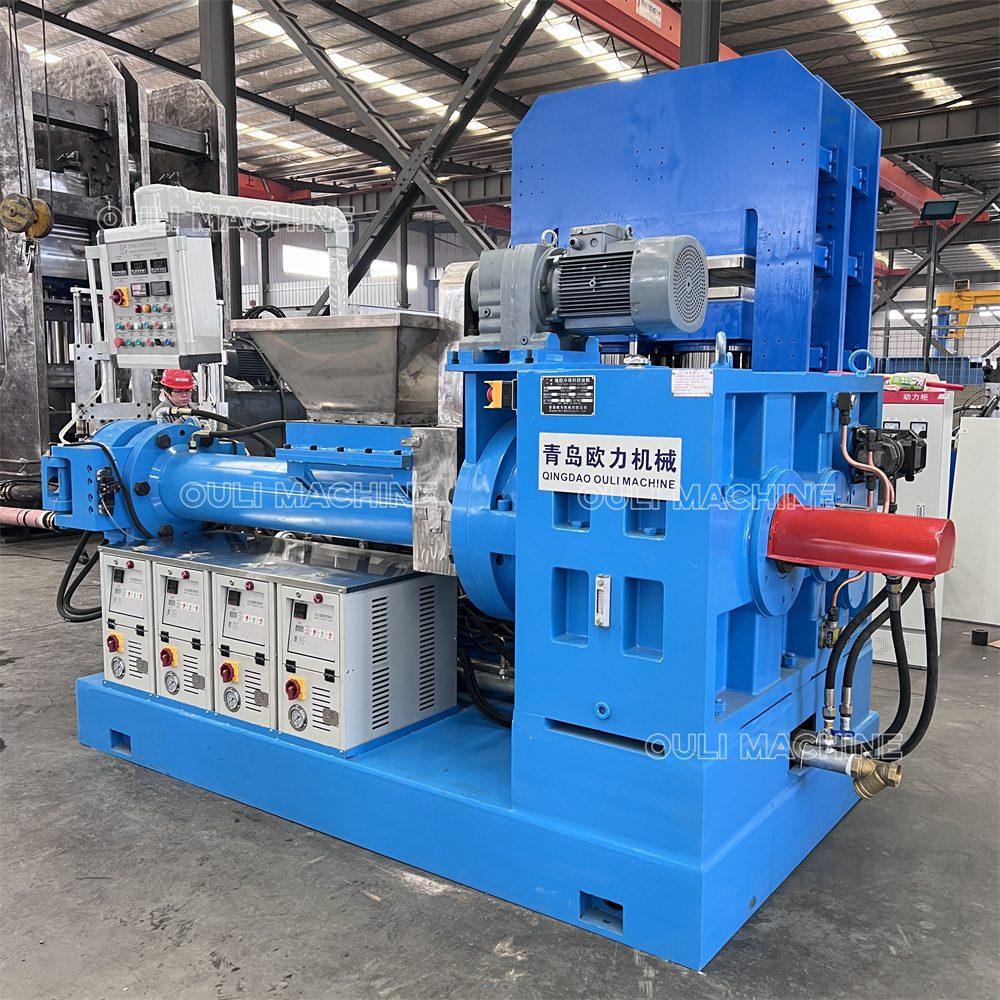

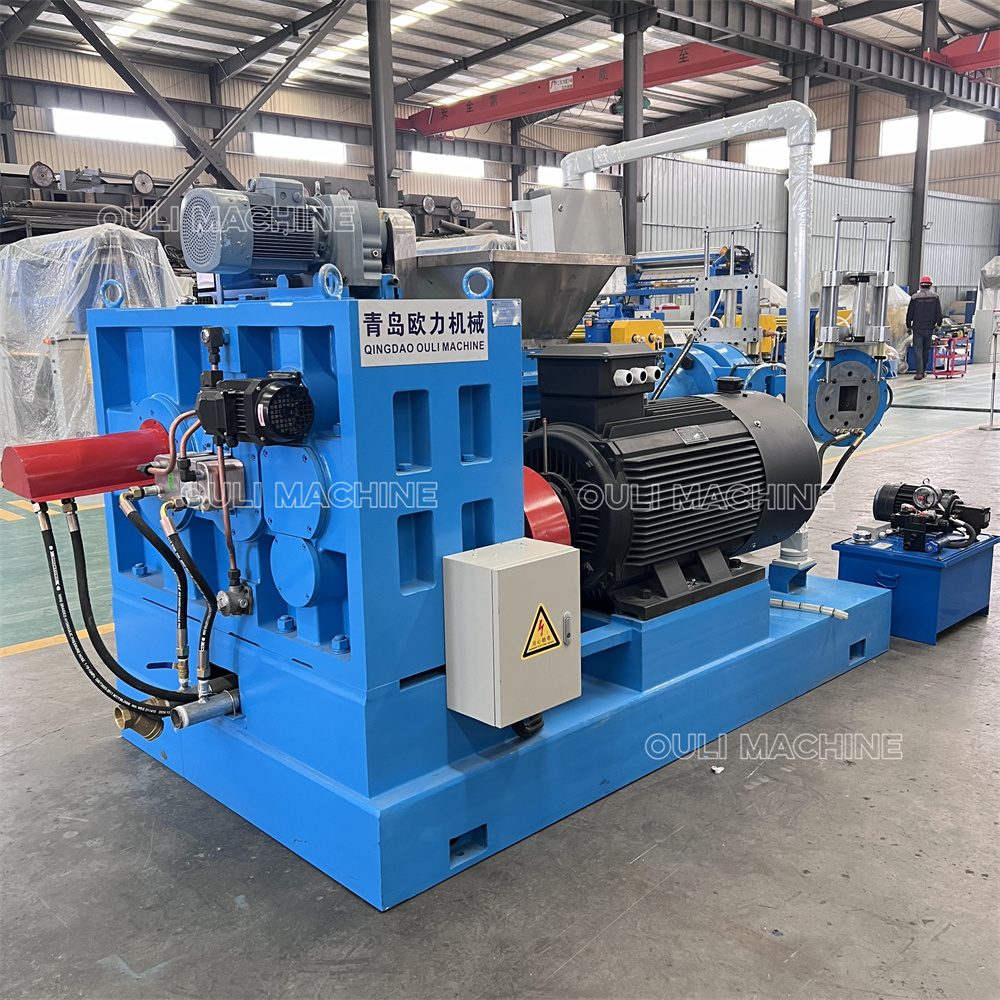

Cold Feed rubber Extruder machine

Cold Feed rubber Extruder machine
Cold Feed Extruder represents the cutting edge of rubber extrusion technology, capable of directly extruding and forming rubber compounds (in strip or pellet form) at room temperature without preheating.
Integrating feeding, plasticizing, homogenizing, and extruding into a single unit, they have become the mainstream choice for modern continuous rubber production lines due to their streamlined processes, high automation levels, and precise process control.
CONTACT US

Technical Parameters

Model

XJD-75

XJD-90

XJD-120

XJD-150

XJD-200

XJD-250

Screw diameter (mm)

75

90

120

150

200

250

L/D

18-14

12-16

12-16

12-18

12-18

12-18

Screw speed (r/min)

0-60

0-60

0-60

0-60

0-60

0-60

Motor power (KW)

37-45

75-90

90-110

200-220

315-355

400-500

Capacity (kg/h)

100-180

250-350

600-800

1000-1500

1600-2500

2800-3500

Total weight (t)

2.1

3

4.2

5.5

9.8

15

Advantage and Main Feature

1.Streamlined Processes: Directly utilizing rubber material from the internal mixer (after cooling) eliminates the need for separate open mill hot mixing and feeding steps. This simplifies production workflows while reducing equipment investment, factory space requirements, and labor costs.


2.Precise Temperature Control: High screw length-to-diameter ratio and multi-stage precision temperature control systems, the thermal process of the rubber compound is managed with greater accuracy and consistency. This reduces the risk of scorching and ensures exceptional uniformity in product performance.


3.Wide adaptability: From natural rubber and synthetic rubber to specialty rubbers (such as EPDM, fluorocarbon rubber, and silicone rubber), high-quality extrusion can be achieved by adjusting screw configurations and process parameters.

FAQ

Q:

Will you offer the pre-sales service?

A:
Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water, electrical,
machine layout in factory, etc.
Q:

What about the after-sales service? Will you send your engineer to my country to help commission and installation?

A:
Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
OULI will send engineer to set up and supply training works if customer need (Extra cost) .
Q:

What is the warranty of the machine ?

A:
The warranty period of whole machine is 12 months and key parts will be depended.
Technical support will be supplied within 24 hours by E-mail or online video if any problem.
